This is a read-only archive of the inkscapeforum.com site. You can search for info here or post new questions and comments at i am not really sure what this is called - but i know i have done it and now i cant remember how i did it.

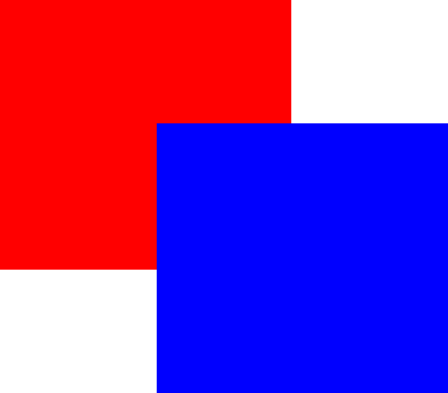

what i am trying to do is ---- in the image is 2 squares and i want to remove the lower of the two but just the area that is under the top square- so the bottom one is an "L" shape -- i saw a video of it but i cant find that either. please help thanks ken
combine help
combine help
- Attachments
-
- drawing.svg
- (2.4 KiB) Downloaded 188 times
-
- drawing.png (1.69 KiB) Viewed 1996 times
Re: combine help
Select both objects the >Path >Difference (Ctrl+-)?
Re: combine help
I think vwanweb is right. But I'm a bit confused by "top", "bottom", "lower", etc. If you mean the red one is on the bottom, vwanweb is right (and the resulting red "L" would be upside-down). But the red one is at the top of the page, and if you want a blue, rightside-up "L", you'll need to change the z-order of the squares.
