PDF circles import as q's

Postby ASKough » Thu Jul 04, 2013 5:44 am

Hi Inkscape,
My adviser is out of town for a week so I am attempting to learn a new tool to jazz up some figures while I am less supervised; I choose Inkscape as my project! I read through most of the manual and immediately ran into an issue: when I import the PDFs I exported from R, the closed and filled circles turn into lowercase q's. So:
1) Is there an easy way to switch all of the q's into circles?
2) I realize that I could probably just place circles over each of the q's and then remove the q's, but I am concerned that this is going to be a recurring error, and if anyone has a faster/efficient method for switching text into circles or other objects, that would be fantastic.

Attached:
1) [rn.pdf] sample pdf from one panel

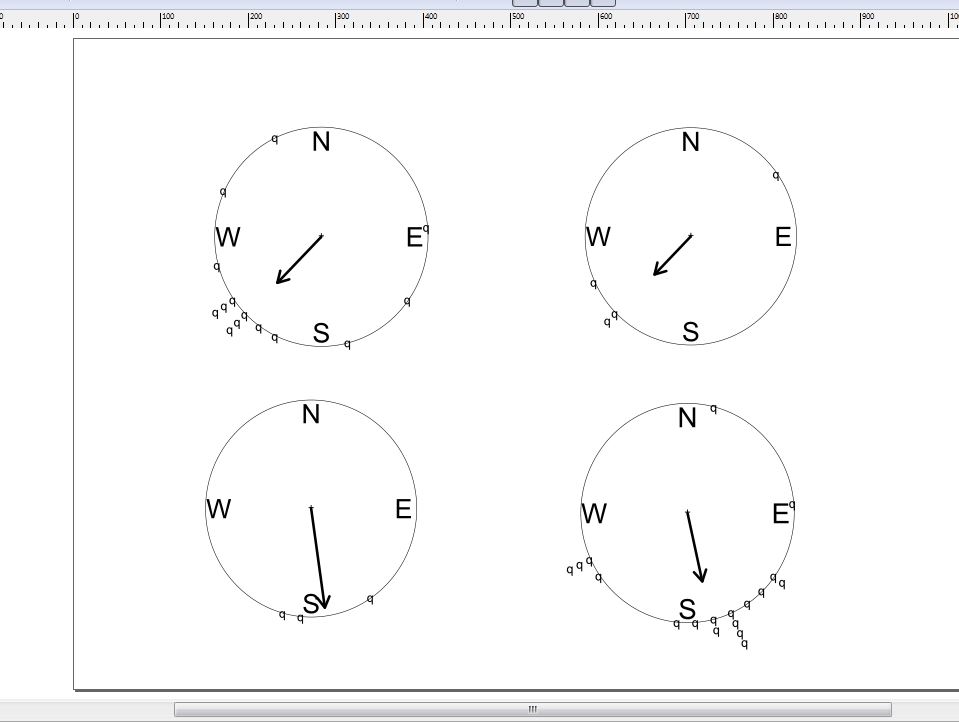

2) [circles_to_Qs.JPG] screenshot of how it looks in Inkscape where the circles became q's (I will put 4 panels together in final)

Thank you so much for your time
Cheers-Andy
Attachments
rn.pdf
(10.31 KiB) Downloaded 163 times

v1nce
Posts: 696
Joined: Wed Jan 13, 2010 4:36 am

Re: PDF circles import as q's

Postby v1nce » Thu Jul 04, 2013 7:06 am

It looks like those are not circles. Those are 'q' character in ZapfDingbats (or alike) font.

What is 'R'. In the export options of 'R' could you export font as path or something ? Could you replace ZapfDingbats with something more common (Dingbats) before exporting ?

Is ZapfDingbats font installed on the computer running inkscape ?
Does it work if you install(*) this font ?

* = Pay attention to licensing issue with this font.
Last edited by v1nce on Thu Jul 04, 2013 7:17 am, edited 1 time in total.

Lazur
Posts: 4717
Joined: Tue Jun 14, 2016 10:38 am

Re: PDF circles import as q's

Postby Lazur » Thu Jul 04, 2013 7:08 am

Welcome aboard!

That's a weird one.
Those circles should turn to lowercase l-s as copied/pasted from the pdf.
Opened the pdf with a notepad, it shows clearly that they were made with the font ZapfDingbats.
As seen here, l should appear http://www.fontpalace.com/font-details/ZapfDingbats/

Download that font, and install it on your system, then inkscape should hopefully import the pdf right.
