Apply gradient to inner part of frame

Postby neigaard » Mon Dec 12, 2011 8:33 pm

Hello

I am trying to make a frame (like a picture frame) where it looks like the inner part of the frame has some 3D effect as if the frame slopes down. Now I can do this by adding some gradient to the inner most parts of the frame, but if I e.g. add a gradient to the vertical left inner part that gradient gets added to the entire height of the frame and I would like it to stop where the the vertical frame part meets the upper frame part (in a 45 degree angle). I have no idea on how to do this. Must I build my frame of the four separate parts to do this?

Thank you
Søren

User avatar
brynn
Posts: 10309
Joined: Wed Sep 26, 2007 4:34 pm
Location: western USA
Contact:

Re: Apply gradient to inner part of frame

Postby brynn » Mon Dec 12, 2011 9:32 pm

Welcome to InkscapeForum!

I can't quite imagine what you're describing. Do you mean like a beveled and/or mitered corner? Could you show an example the the effect you're trying to do? I think you might be onto the solution already, with the idea to use 4 sides or rectangles. But I'm not clear what you're attempting.

neigaard
Posts: 3
Joined: Mon Dec 12, 2011 7:00 pm

Re: Apply gradient to inner part of frame

Postby neigaard » Mon Dec 12, 2011 10:50 pm

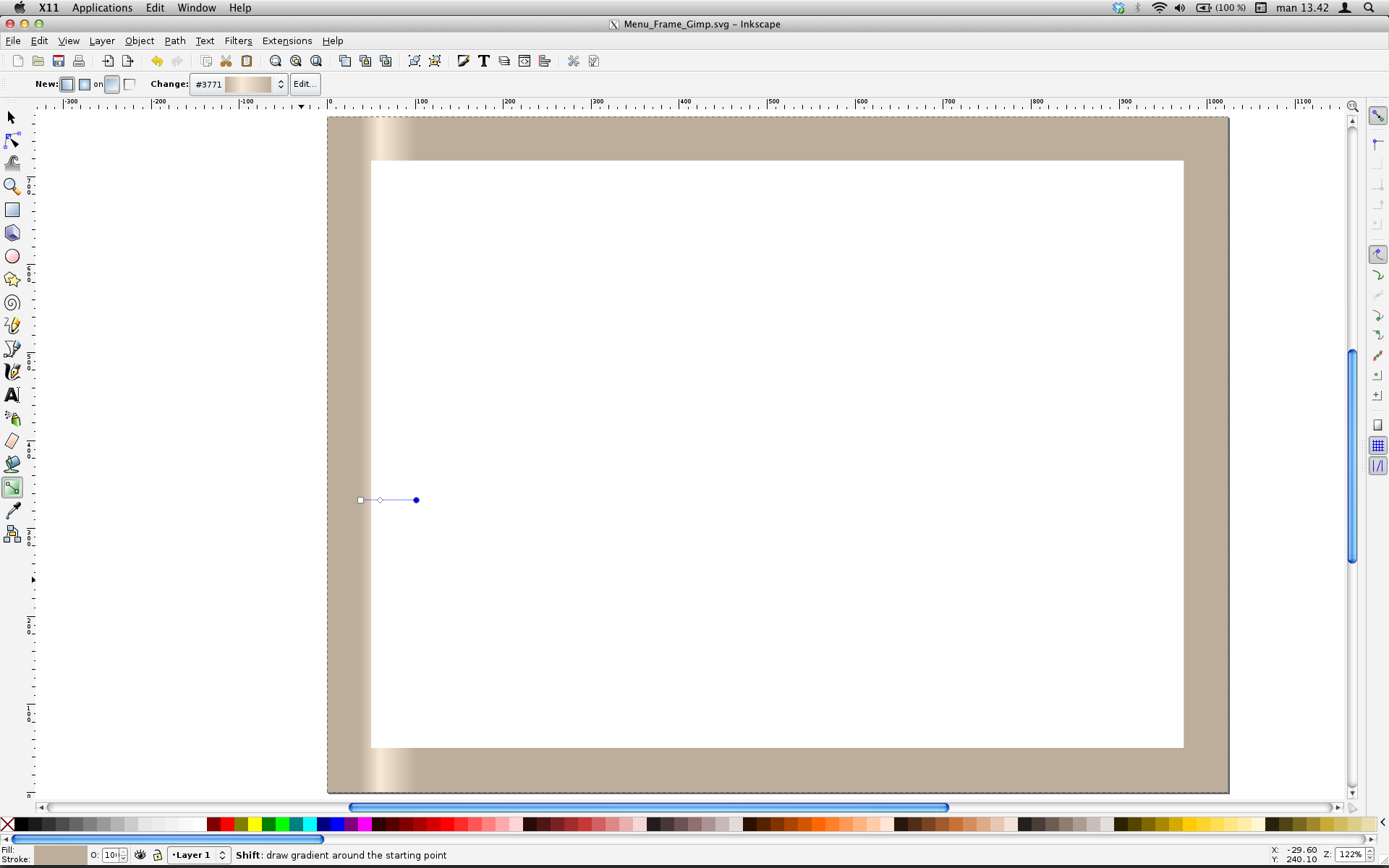

Thank you for the reply and the welcome sign. Yes english is not my native language so my descriptions often come short. Here is a screenshot of what I do not want, you can see that the gradient is from top to bottom and I want it to look like a mitered frame (I think after looking up mitered). So is the only/best way to do this by making four different shapes and add gradient to each?
Attachments

User avatar
brynn
Posts: 10309
Joined: Wed Sep 26, 2007 4:34 pm
Location: western USA
Contact:

Re: Apply gradient to inner part of frame

Postby brynn » Tue Dec 13, 2011 1:18 pm

Yes, that will probably be the best way to do it. And you may find that you want to use a lighter color gradient on the bottom piece and one of the side pieces, and a darker color on the top and other side pieces. That will create the illusion of light and shadow, and enhance a 3D appearance.

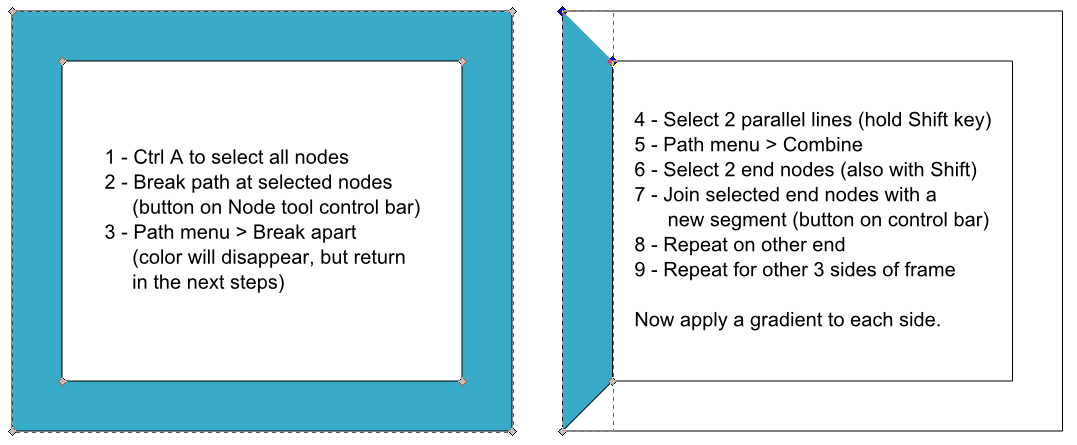

So break up your exising rectangle at all 8 corners (4 inside, 4 outside). Then connect the appropriate nodes, so that you have the shape of a mitered piece of wood. Ok, that was going to take a lot of detailed explanation, so I made a little tutorial:

mitered frame.PNG
mitered frame.PNG (72.54 KiB) Viewed 1024 times


I forgot to write it at the end of the steps, but you might want to Group all 4 sides, so that they stay together if you move them around. (Object menu > Group, or button on command bar)

Let us know how it goes :D

User avatar
druban
Posts: 1917
Joined: Fri Nov 20, 2009 10:48 pm

Re: Apply gradient to inner part of frame

Postby druban » Tue Dec 13, 2011 8:50 pm

It won't be vector but a blur is also a quick way to do this.
Attachments
drawing.svg
(7.62 KiB) Downloaded 143 times
Your mind is what you think it is.

neigaard
Posts: 3
Joined: Mon Dec 12, 2011 7:00 pm

Re: Apply gradient to inner part of frame

Postby neigaard » Tue Dec 13, 2011 9:38 pm

Thank you :)

I made my rectangle/frame by using the rectangle tool and it did not have a node at the bottom left corner for some reason? So instead I simply created two shapes (side and top) and duplicated these and then applied gradients to each after the duplicated to make them different, and it looks good to me :)

Beat regards
Søren
