Mountain Lion file don't open

Post questions on how to use or achieve an effect in Inkscape.
Forum rules
Post Reply
Fidji
Posts: 4
Joined: Wed Apr 17, 2013 12:47 am

Mountain Lion file don't open

Postby Fidji » Wed Apr 17, 2013 1:18 am

Hello,

I test Inkscape to replace Illustrator.
My file is in SVG.
XQuartz run.
I open my file with Inkscape and I work correctly.
I save it : OK
But when i want to open this file, i cannot.

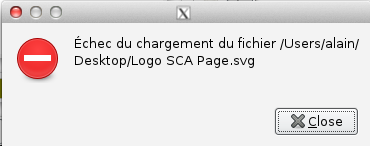

There is a window like this (failure of the loading of the file…)

Do you have some ideas ?

Thanks. :)
Attachments
Capture d’écran 2013-04-16 à 16.54.32.png
Capture d’écran 2013-04-16 à 16.54.32.png (17.76 KiB) Viewed 1899 times
Top
User avatar
ragstian
Posts: 1181
Joined: Thu Oct 11, 2012 2:44 am
Location: Stavanger-Norway

Re: Mountain Lion file don't open

Postby ragstian » Wed Apr 17, 2013 3:00 am

Hi
But when I want to open this file, I cannot.


Are you trying to open the file by clicking?
Are SVG files associated with Inkscape?
Do other not edited SVG files open?

http://osxdaily.com/2011/08/15/easily-set-file-association-in-mac-os-x-lion-using-always-open-with-app/

RGDS
Ragnar
Good Luck!
( ͡° ͜ʖ ͡°)
RGDS
Ragnar
Top
Fidji
Posts: 4
Joined: Wed Apr 17, 2013 12:47 am

Re: Mountain Lion file don't open

Postby Fidji » Wed Apr 17, 2013 4:10 am

Are you trying to open the file by clicking?

Yes
Are SVG files associated with Inkscape?

Yes
Do other not edited SVG files open?

Yes

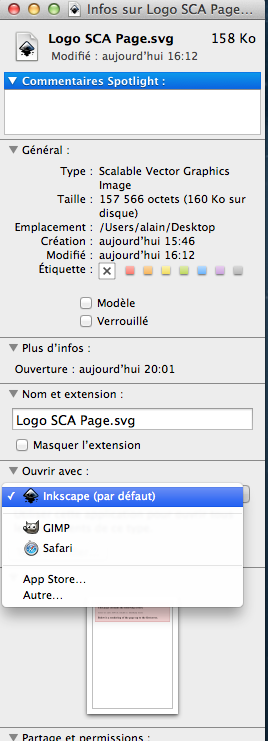

You can see informations in the copy.

I don't understand why it can't open :(
Attachments
Capture d’écran 2013-04-16 à 20.05.49.png
Capture d’écran 2013-04-16 à 20.05.49.png (71.76 KiB) Viewed 1880 times
Top
User avatar
ragstian
Posts: 1181
Joined: Thu Oct 11, 2012 2:44 am
Location: Stavanger-Norway

Re: Mountain Lion file don't open

Postby ragstian » Wed Apr 17, 2013 8:19 am

Hi.

Check file permission.
http://support.apple.com/kb/PH10669

Good Luck
RGDS
Ragnar
Good Luck!
( ͡° ͜ʖ ͡°)
RGDS
Ragnar
Top
Fidji
Posts: 4
Joined: Wed Apr 17, 2013 12:47 am

Re: Mountain Lion file don't open

Postby Fidji » Wed Apr 17, 2013 6:15 pm

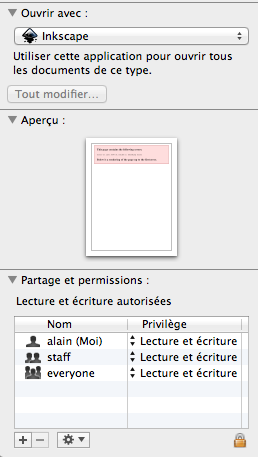

Permission are all read and write.

I put my file in copy next, if you want to try open it with your Inkscape.

Thanks.
Attachments
Capture d’écran 2013-04-17 à 10.10.29.png
Capture d’écran 2013-04-17 à 10.10.29.png (30.25 KiB) Viewed 1822 times
Last edited by Fidji on Thu Apr 18, 2013 5:53 pm, edited 1 time in total.
Top
hulf2012
Posts: 716
Joined: Sat Nov 24, 2012 12:37 pm

Re: Mountain Lion file don't open

Postby hulf2012 » Thu Apr 18, 2013 3:31 am

Hello:
Just for curiosity, I tried to open your shared file in my pc (with windows 7 and Inkscape 0.48). It didn't opened.
So I tried with a text editor (Scite, notepad, any of these).

What i found it's a lot of extrange xml/svg code, from adobe ilustrator, I believe.

I don't have enough knowledge of SVG code to test a cleaning of your file. Anyway, it seems that there are some fonts and images embeded in your file, that inkscape doesn't know how to render.

Sorry, i can't help more
If you have problems:
1.- Post a sample (or samples) of your file please.
2.- Please check here:
http://tavmjong.free.fr/INKSCAPE/MANUAL/html/index.html
3.- If you manage to solve your problem, please post here your solution.
Top
User avatar
flamingolady
Posts: 687
Joined: Wed Jun 10, 2009 1:40 pm

Re: Mountain Lion file don't open

Postby flamingolady » Thu Apr 18, 2013 4:28 am

I couldn't open it in Inkscape either. Wonder if you could ask someone with AI to try to open it (in AI).
Top
Lazur
Posts: 4717
Joined: Tue Jun 14, 2016 10:38 am

Re: Mountain Lion file don't open

Postby Lazur » Thu Apr 18, 2013 4:58 am

With the deleting of error causing things from the codes I could open it.
That version is attached.

In my opinion it is painful both on the technical and on the "artsy" level.
No program is a guaranty for a good design.
Attachments
hlp24.svg
(26.83 KiB) Downloaded 163 times
Top
v1nce
Posts: 696
Joined: Wed Jan 13, 2010 4:36 am

Re: Mountain Lion file don't open

Postby v1nce » Thu Apr 18, 2013 7:06 am

Salut Alain,

The only error i saw was on line 1698
<?xpacket begin='' id='W5M0MpCehiHzreSzNTczkc9d'?><x:xmpmeta
x:xmptk="XMP toolkit 3.0-29, framework 1.6">
I removed a faulty char in begin='' then I could open it in inkscape.

If you want to reopen it later in AI this version will -perhaps- behave better than Lazur URH's one.
Attachments
Logo SCA Page.svg
(153.87 KiB) Downloaded 162 times
Top
Fidji
Posts: 4
Joined: Wed Apr 17, 2013 12:47 am

Re: Mountain Lion file don't open

Postby Fidji » Thu Apr 18, 2013 5:52 pm

Great thanks to you v1nce, Lazur URH and hulf2012.
Your are really "formidable" in french :D
I will not use AI now with Mountain Lion. :lol:
Top
