I really need help with the inkscape rulers.

Post questions on how to use or achieve an effect in Inkscape.
iaisu
Posts: 5
Joined: Tue Feb 16, 2016 7:10 am

I really need help with the inkscape rulers.

Postby iaisu » Tue Feb 16, 2016 7:15 am

Okay, so this is my issue:
I am trying to make a youtube banner for my channel.
I know the dimensions are 2560x1440, however, my ruler for some unknown reason is not showing it completely, and I know why.
My ruler is also showing -1250 to 0. I don't want it to, or else I can't view my image.
I want it to go from 0 to 2560 and that's it.
How do I change my ruler to not view the negative dimensions?
Please help ASAP.
Thank you.

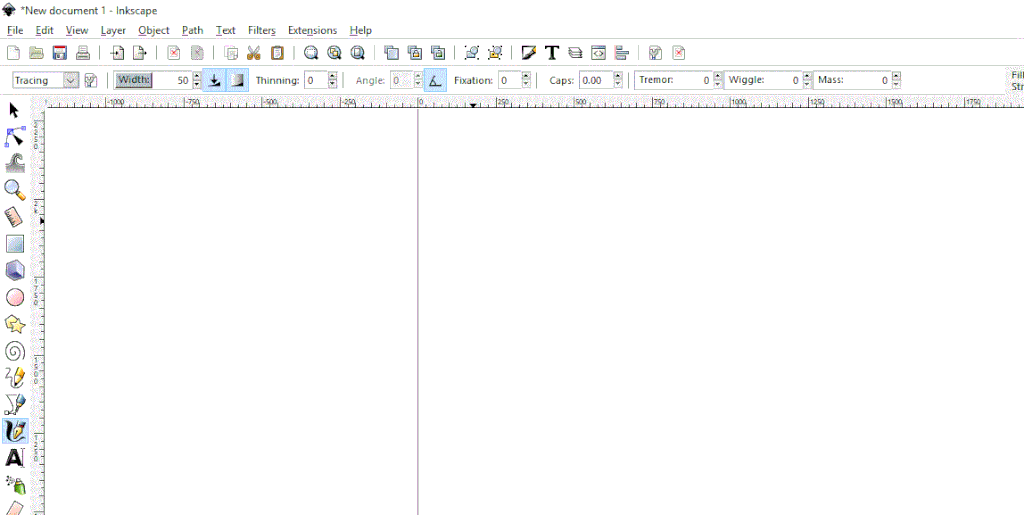

This is the picture, as you can see, it doesn't start at 0, but negative.
Last edited by iaisu on Tue Feb 16, 2016 7:35 am, edited 1 time in total.

Moini
Posts: 3381
Joined: Mon Oct 05, 2015 10:44 am

Re: I really need help with the inkscape rulers.

Postby Moini » Tue Feb 16, 2016 7:33 am

I'm not sure if I understand the underlying problem completely, but I think that what you really want to do is change the page size to 2560x1440px.

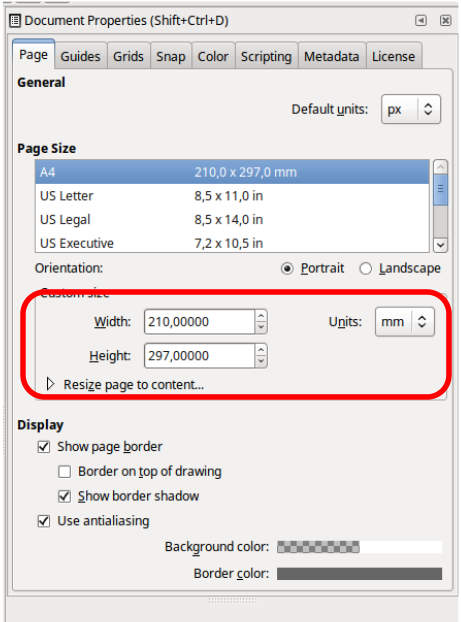

You can adapt the page size by going to File -> Document Properties and then entering a width and a height in the two central fields.
Set the unit to pixels first, then after that, change the values.



You will not need the rulers to know the limits of the drawing after this, because your page will be the size of the banner you want to create, and the page borders will be visible.
Something doesn't work? - Keeping an eye on the status bar can save you a lot of time!

Inkscape FAQ - Learning Resources - Website with tutorials (German and English)

Lazur
Posts: 4717
Joined: Tue Jun 14, 2016 10:38 am

Re: I really need help with the inkscape rulers.

Postby Lazur » Tue Feb 16, 2016 7:34 am

Hi.

You can hide the rulers (Ctrl+R) as an alternative.
I don't get why part of the interface would affect the drawing's size you working on -do you happen to make a screenshot of that size?

If the values go from negative it sounds that your object is positioned off the origo that way.
In the document's properties (Shift+Ctrl+D) you can resize page to content if you will.

Edit: Ha! That screenshot did help clarifying. You can zoom to content -zoom to fit drawing in window, by 4 on the numpad-.
Other than that is a very specific request, can't say there is a setting I know of to pan the page borders to the side of the window as per se.

iaisu
Posts: 5
Joined: Tue Feb 16, 2016 7:10 am

Re: I really need help with the inkscape rulers.

Postby iaisu » Tue Feb 16, 2016 7:38 am

I have no idea why it's doing this. I did set the image but still showing the ruler, even if I remove the ruler I cannot see the image fully.
I also tried resize page to content, but to no avail. Why is this happening?

iaisu
Posts: 5
Joined: Tue Feb 16, 2016 7:10 am

Re: I really need help with the inkscape rulers.

Postby iaisu » Tue Feb 16, 2016 7:40 am

Its like its stuck in that view and I can't do anything about it. I can't view past what you see. I just want to make a simple banner, someone please help. <.> This program is quite difficult to use...

Lazur
Posts: 4717
Joined: Tue Jun 14, 2016 10:38 am

Re: I really need help with the inkscape rulers.

Postby Lazur » Tue Feb 16, 2016 7:45 am

Hmm so you are working from scratch. That's better.

In my humble opinion the rulers are not that necessary on the sides for pixel perfect graphics.

If you want to make a banner of that size, you need to set it in the mentioned panel.
If there is no object in the document, you cannot change the view/resize page to content.

Just draw a rectangle of the desired size (F4 tool, type in the values in the top boxes to change size)
then you can resize page to content.

iaisu
Posts: 5
Joined: Tue Feb 16, 2016 7:10 am

Re: I really need help with the inkscape rulers.

Postby iaisu » Tue Feb 16, 2016 7:45 am

Lazur URH wrote:Hi.

You can hide the rulers (Ctrl+R) as an alternative.
I don't get why part of the interface would affect the drawing's size you working on -do you happen to make a screenshot of that size?

If the values go from negative it sounds that your object is positioned off the origo that way.
In the document's properties (Shift+Ctrl+D) you can resize page to content if you will.

Edit: Ha! That screenshot did help clarifying. You can zoom to content -zoom to fit drawing in window, by 4 on the numpad-.
Other than that is a very specific request, can't say there is a setting I know of to pan the page borders to the side of the window as per se.

OMG THE ZOOM HELPED. THANK YOU!
I wish to still fix the negative but oh well. Your solution worked 100%.
MUCH LOVE! <3

Moini
Posts: 3381
Joined: Mon Oct 05, 2015 10:44 am

Re: I really need help with the inkscape rulers.

Postby Moini » Tue Feb 16, 2016 7:46 am

Additional zoom methods:
the zoom tool is the one with the magnifying glass.
Or you can set a zoom level at the bottom right, or zoom in and out by holding Ctrl and using the mouse wheel.
Something doesn't work? - Keeping an eye on the status bar can save you a lot of time!

Inkscape FAQ - Learning Resources - Website with tutorials (German and English)

iaisu
Posts: 5
Joined: Tue Feb 16, 2016 7:10 am

Re: I really need help with the inkscape rulers.

Postby iaisu » Tue Feb 16, 2016 7:47 am

Lazur URH wrote:Hmm so you are working from scratch. That's better.

In my humble opinion the rulers are not that necessary on the sides for pixel perfect graphics.

If you want to make a banner of that size, you need to set it in the mentioned panel.
If there is no object in the document, you cannot change the view/resize page to content.

Just draw a rectangle of the desired size (F4 tool, type in the values in the top boxes to change size)
then you can resize page to content.

This also helped too!
You are a God-sent. Thanks so much! \^o^/

Lazur
Posts: 4717
Joined: Tue Jun 14, 2016 10:38 am

Re: I really need help with the inkscape rulers.

Postby Lazur » Tue Feb 16, 2016 7:56 am

Glad it worked.
You are welcome!
